How to Remove or Reorder Characteristics in a Part File
Print Friendly View
written: 07/26/2024
last modified: 01/07/2025

Removing a Characteristic from a Part File

  1. In QC-CALC go to File > Properties > Modify Database Structure...

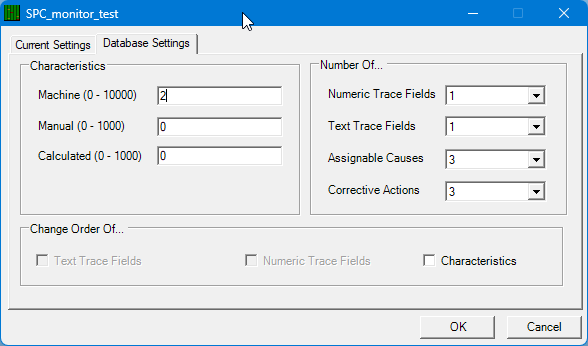

  2. Select the Database Settings tab.


  1. Alter the number of machine characteristics by the amount you want to remove. For example, in the above picture there was originally 3 Machine characteristics. To remove 1 characteristic, "2" was entered.
  2. Select the OK button

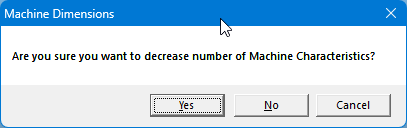

  3. Select Yes when you are presented with this:

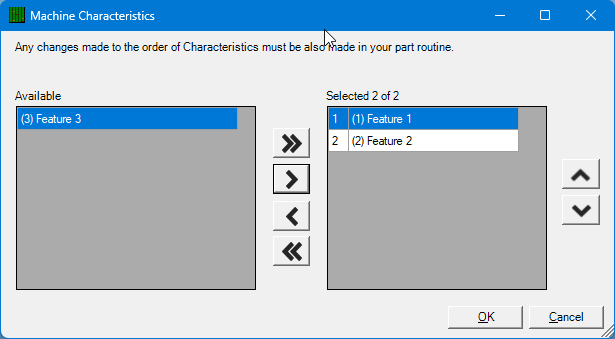

  1. On the next screen, move to the box on the right only the characteristics you wish to keep using the image.png and image.png buttons


  1. Select the OK button when you are finished.
  2. QC-CALC Real-Time will reload your part file

How to Reorder Characteristics in a Part File

  1. In QC-CALC go to File > Properties > Modify Database Structure...
  2. Select the Database Settings tab

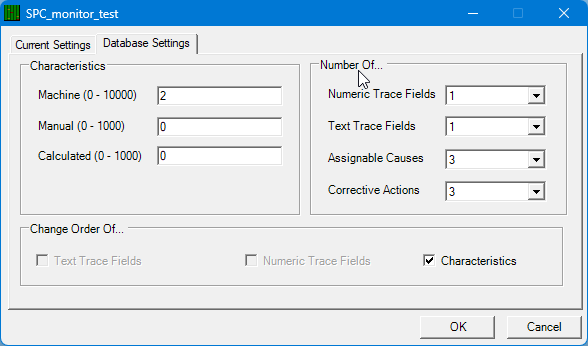

  3. Select (check) Change Order Of... Characteristics:

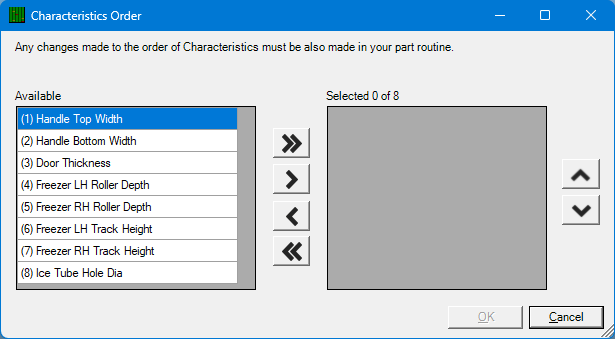

  1. On the next screen, use the image.png button to move all the characteristics to the Selected pane on the right
  2. Next, use the image.png and image.pngbuttons to change the order of your characteristics in the Selected pane on the right.


  1. Select the OK button
  2. QC-CALC Real-Time will reload your part file

NOTE: If you remove or reorder the characteristics in your part file, then you MUST do the same in the part program in your inspection software. If you do not do this, the next time you run your program you will get new characteristics in the part file with duplicate labels because QC-CALC Real-Time matches up the incoming characteristics based on their order, not based on the labels.

Applies To

QC-CALC Real-Time v.4.3
QC-CALC Real-Time v.4.1
QC-CALC Real-Time v.4.0
