This nonstatistical application is used in conjunction with QC-CALC Real-Time to quickly identify bad parts on a multiple-part inspection fixture. QC-Sort makes it easy for your operators to remove problem parts from the fixture by using color coded squares to identify the bad parts. QC-Sort is adjustable and easily configured to display the physical layout of your parts as they are fixtured.

How It Works
QC-Sort takes the data in QC-CALC and looks at it by a set number of parts that you configure. The parts are then laid out to match your fixturing. If any feature on a part is out of specification, that part is considered a bad part. QC-Sort displays the corresponding rectangle for that part in red. All good parts are displayed in green.

In addition, an optional history panel can show you (up to) the last 5 sets of previous results.

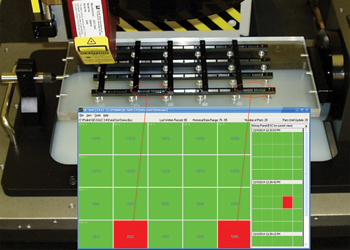

The picture on the right shows a 20 part fixture in a 5x4 arrangement. As can be seen, parts 17 and 20 are bad and should be thrown away or reworked.
Key Features
Try it for FREE
Buy It

$660.00  (Upgrade: $165.00)
**  6 Months FREE Upgrades Included! **
